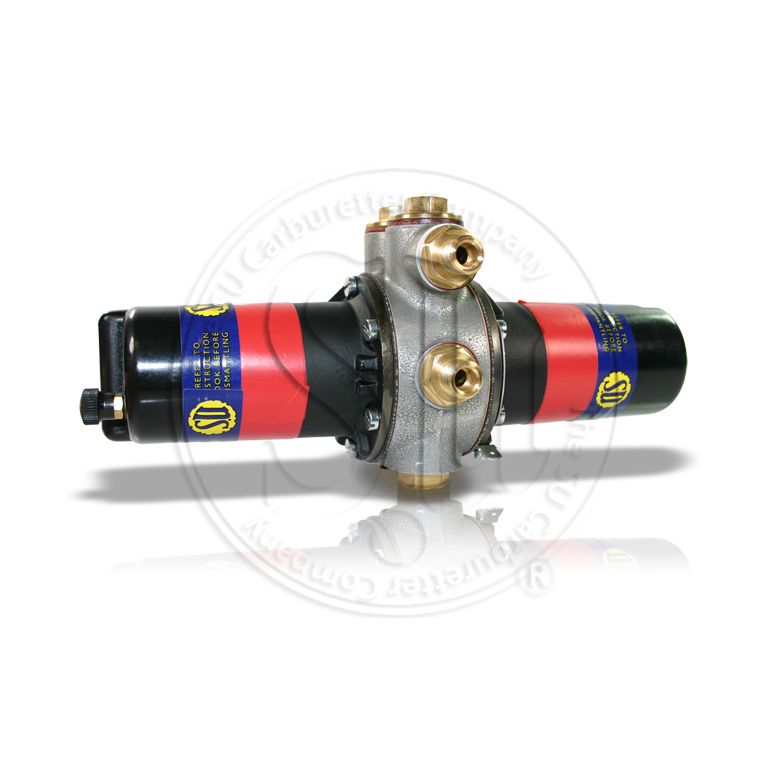

Dual HP Fuel Pump Electronic - Positive Earth

Part Number: AUA161EP

Description: Dual HP Fuel Pump Electronic - Positive Earth

Availability: Low Stock (4)

Ex. VAT: £345.00 (Incl. VAT: £414.00 )

Details for Dual HP Fuel Pump Electronic - Positive Earth

Double ended "Electronic" Pump. Positive earth. High pressure 12 Volt with min flow of 16 gallons per hour. Both ends work together. "Stepped" top end cap.

For more information on SU Fuel Pumps please see the technical pages of the SU Shop.

Please note:

For all other enquires please contact us either by phone on: +44 (0) 1722 412 500 or via email at: info@burlen.co.uk

Due to the nature of this product, it may not always be available off the shelf and may need to be built to order. All of our Carburettors and Fuel Pumps are still built by hand here in our factory in Salisbury.

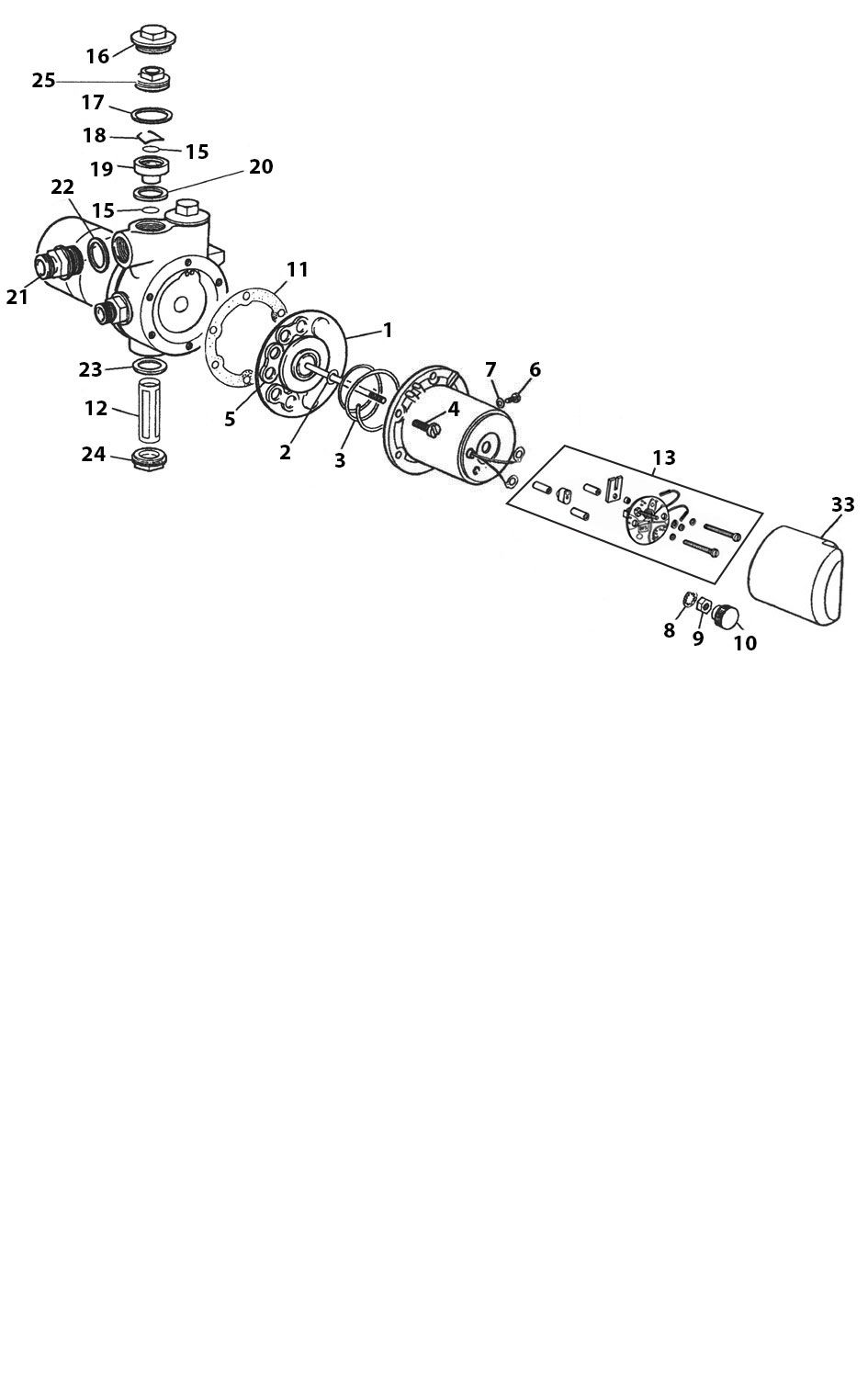

Components List

Please select your items from below
No Item
1 Diaphragm Assembly - HP Pumps View
2 -
3 Spring View
4 Screw View
5 Superceded now to AUA 1433 View
6 Screw: 4BA X 0.25 View
AUA 4850 View
7 Spring washer View
AUC 2246 View
8 Shakeproof Washer - Superseded to 07734 View
9 Nut for terminal knob - 2BA View
10 Terminal Knob View
11 Fuel Pump Diaphargm Gasket-Non Asbestos View
12 Fuel Filter for Fuel Pump Body View
13 Electronic Pump Conversion Kit Positive Earth 12 V View
14 Stepped Top Pump cover. Black With no vent hole. View
15 Valve Disc View
16 Flanged Plug View
17 Washer - SU Double Pumps View
18 Circlip View
19 Valve Cage View
20 washer View
21 Brass Union View
22 Fibre washer View
23 washer View
24 Filter Plug View
25 Valve Cage Retainer View
