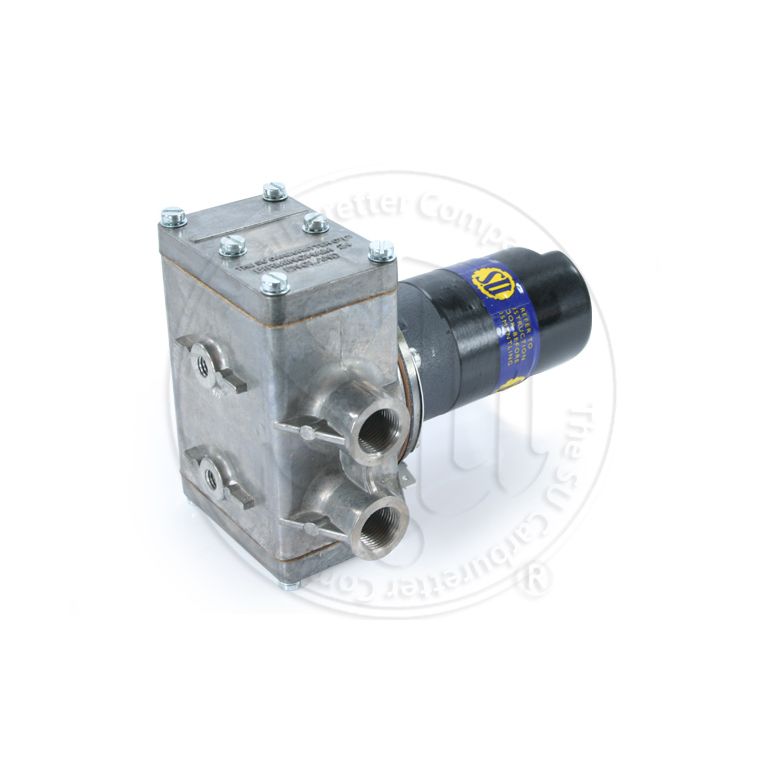

LCS Type Fuel Pump - Dual Polarity

Part Number: AUA 152

Description: LCS Type Fuel Pump - Dual Polarity

Availability: In stock

Ex. VAT: £205.00 (Incl. VAT: £246.00 )

Details for LCS Type Fuel Pump - Dual Polarity

Single ended points type Pump. Dual Polarity. Large capacity 12 Volt with minimum flow of 12.5 gallons per hour. "Stepped" top end cap.For more information on SU Fuel Pumps please see the technical pages of the SU Shop.



Please note:

For all other enquires please contact us either by phone on: +44 (0) 1722 412 500 or via email at: info@burlen.co.uk

Due to the nature of this product, it may not always be available off the shelf and may need to be built to order. All of our Carburettors and Fuel Pumps are still built by hand here in our factory in Salisbury.

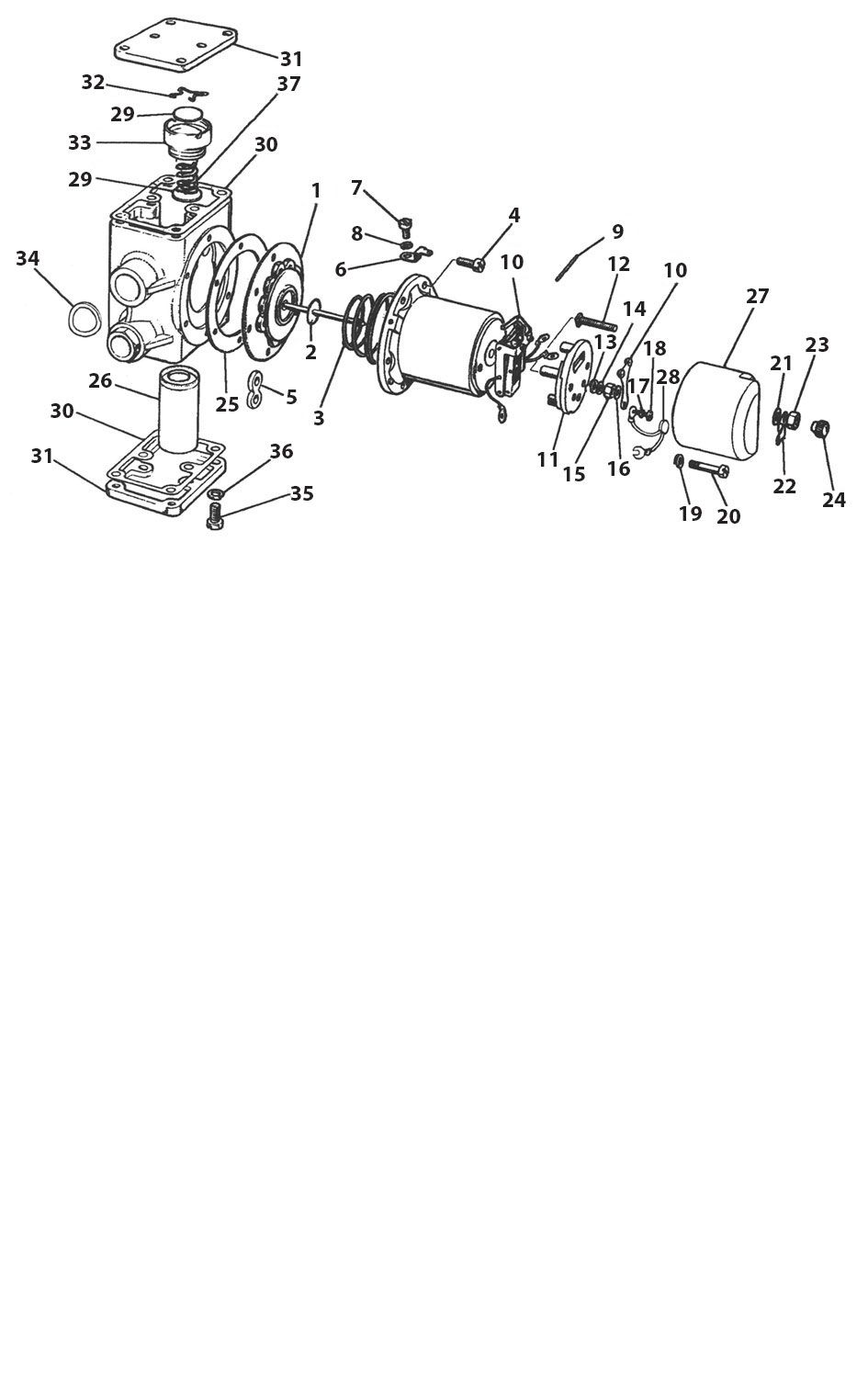

Components List

Please select your items from below
No Item
1 Diaphragm Assembly - HP Pumps View
AUB 6099 View
2 -
3 Spring View
4 Screw View
5 Superceded now to AUA 1433 View
6 Lucar Connector View
7 Screw: 4BA X 0.25 View
AUA 4850 View
8 Spring washer View
AUC 2246 View
9 Rocker Spindle View
10 Twin Point Rocker Assembly and Blade View
11 Pedestal Electric Pumps View
12 Terminal Screw View
13 Spring washer View
14 Lead washer View
15 Terminal Nut View
16 washer View
17 Dished Washer 5BA View
18 Screw 5BA View
19 Spring washer View
20 Screw View
21 Shakeproof Washer - Superseded to 07734 View
22 Lucar Connector View
23 Nut for terminal knob - 2BA View
24 Terminal Knob View
25 Fuel Pump Diaphargm Gasket-Non Asbestos View
26 Filter Assembly View
27 Stepped Top Pump cover. Black With no vent hole. View
28 Supressor Assembly -Dual Polarity View
29 Valve Assembly View
30 Gasket View
31 Lid LCS Pump View
32 Spring View
33 Valve Cage View
34 Fibre washer for Banjo Unions View
35 Screw View
36 washer -Superseded to 07734 View
37 Spring View
