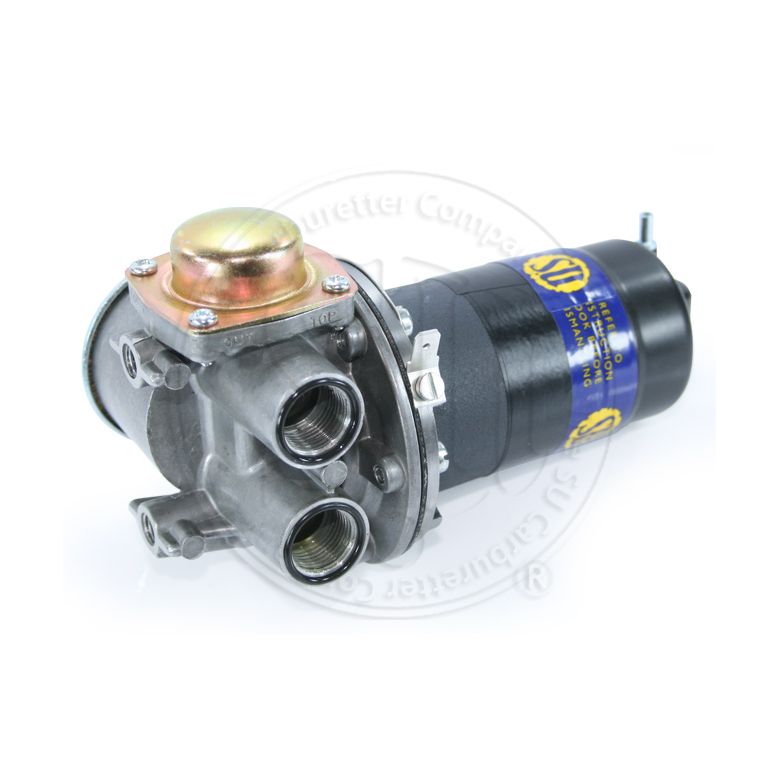

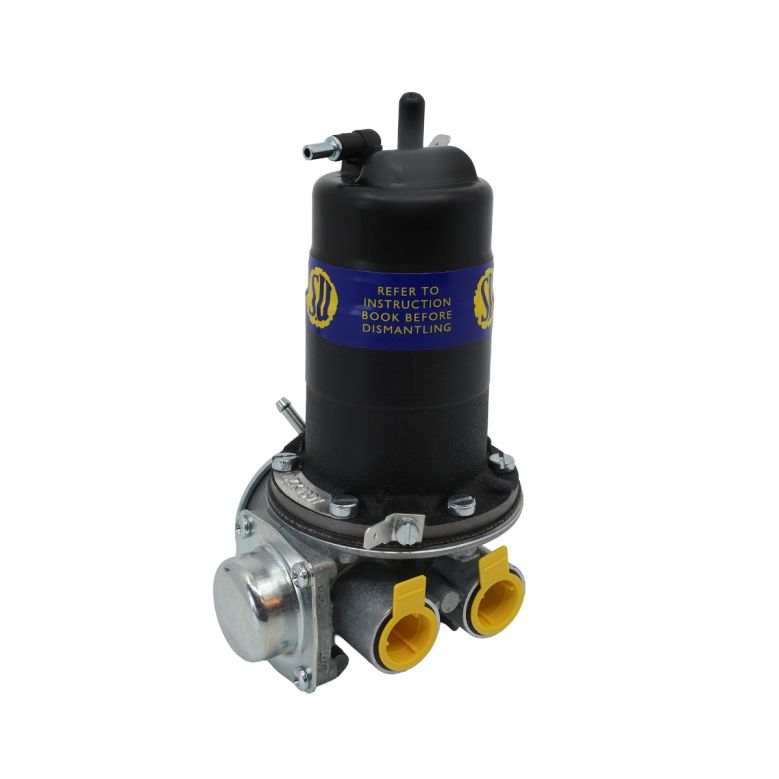

HP Electric Fuel Pump - Dual Polarity

Part Number: AZX 1307

Description: HP Electric Fuel Pump - Dual Polarity

Availability: In stock

Ex. VAT: £95.00 (Incl. VAT: £114.00 )

Details for HP Electric Fuel Pump - Dual Polarity

This Pump is dual polarity and so can be fitted to either positive or negative earth vehicles.High pressure 12 Volt with minimum flow of 15 gallons per hour.

Electronic version also available - see AZX1307EN or AZX1318EP. For more information on SU Fuel Pumps please see the technical pages of the SU Shop.

Please note:

For all other enquires please contact us either by phone on: +44 (0) 1722 412 500 or via email at: info@burlen.co.uk

Due to the nature of this product, it may not always be available off the shelf and may need to be built to order. All of our Carburettors and Fuel Pumps are still built by hand here in our factory in Salisbury.

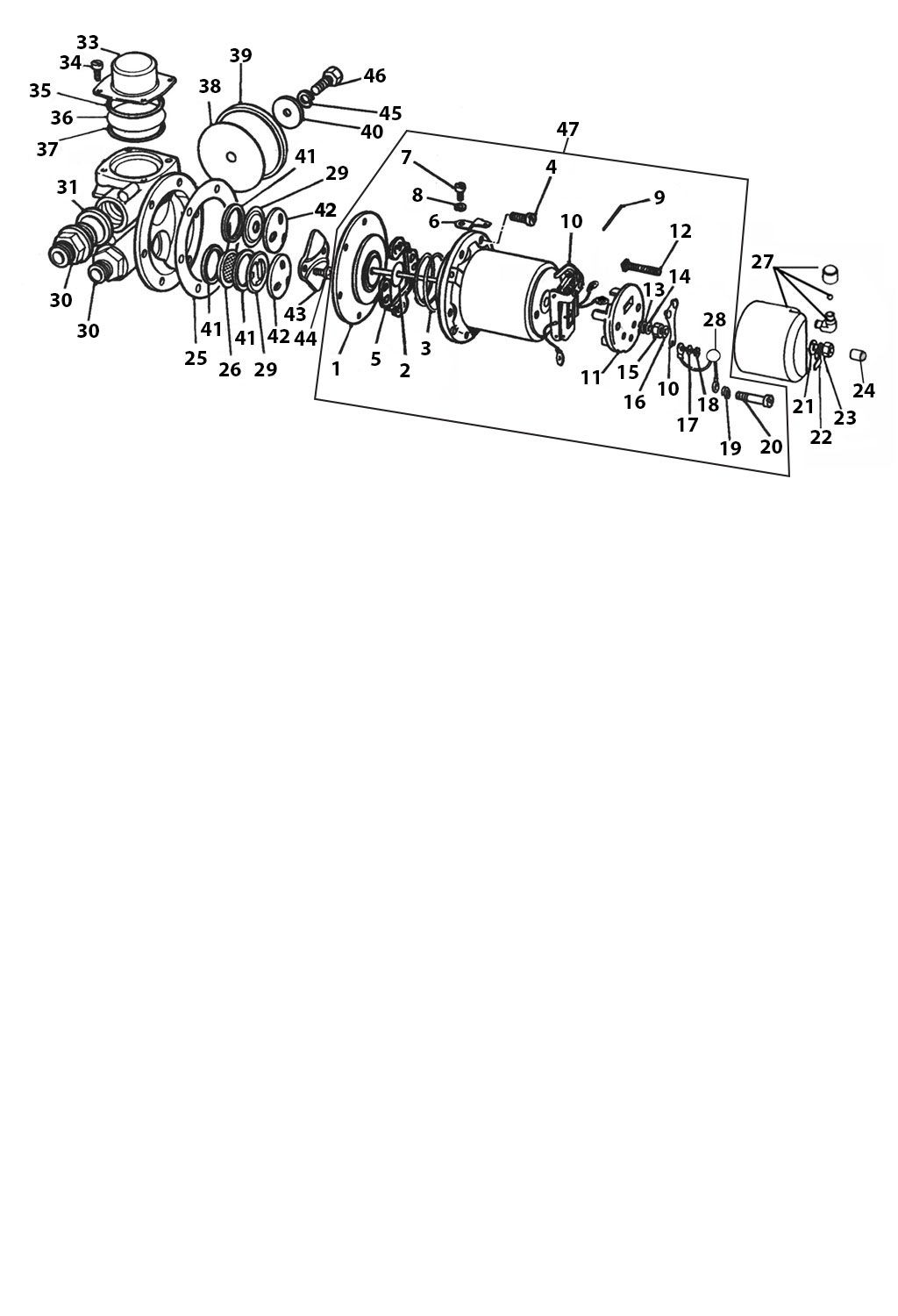

Components List

Please select your items from below
No Item
1 Diaphragm Assembly - HP Pumps View
2 -
3 Spring View
4 Screw View
5 Superceded now to AUA 1433 View
6 Lucar Connector View
7 Screw: 4BA X 0.25 View
AUA 4850 View
8 Spring washer View
AUC 2246 View
9 Rocker Spindle View
10 Twin Point Rocker Assembly and Blade View
11 Pedestal Electric Pumps View
12 Terminal Screw View
13 Spring washer View
14 Lead washer View
15 Terminal Nut View
16 washer View
17 Dished Washer 5BA View
18 Screw 5BA View
19 Spring washer View
20 Screw View
21 Shakeproof Washer - Superseded to 07734 View
22 Lucar Connector View
23 Nut for terminal knob - 2BA View
24 Blanking Cap View
25 Fuel Pump Diaphargm Gasket-Non Asbestos View
26 Filter View
27 Hump Top Pump Cap. Black with air vent hole. View
28 Supressor Assembly -Dual Polarity View
29 Valve Assembly View
30 Union - Superseded to AUB 655B View
31 Fibre washer for Banjo Unions View
32 Sealing Plug View
33 Air Bottle cover View
34 Screw View
35 O Ring View
36 Diaphragm View
37 washer View
38 washer View
39 cover View
40 washer View
41 washer View
42 cover View
43 Clamp Plate View
44 Screw: 8-32 UNC X 375 View
45 washer View
46 Screw View
47 -
