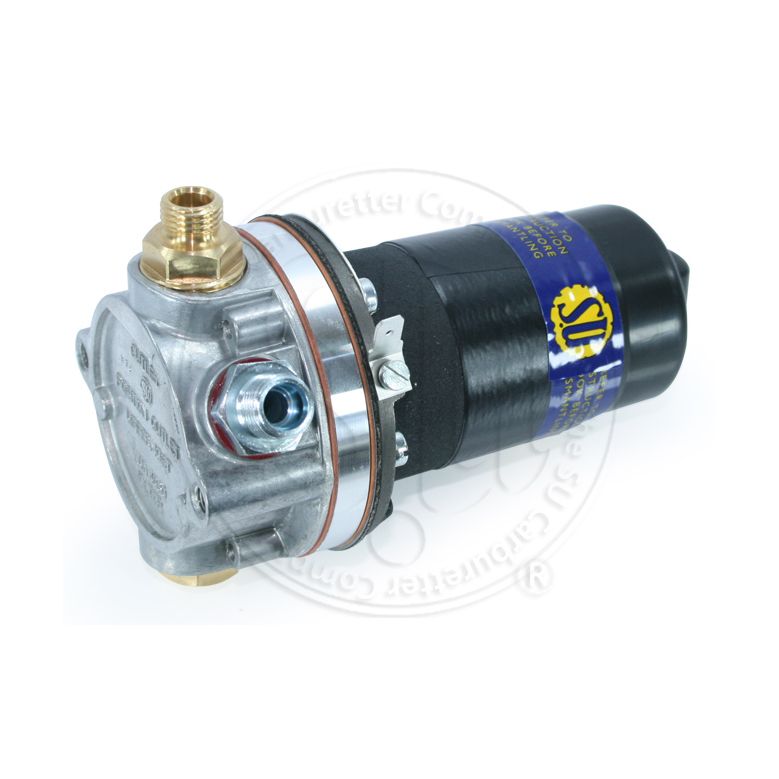

LP Electric Fuel Pump - Dual Polarity

Part Number: AUA 25

Description: LP Electric Fuel Pump - Dual Polarity

Availability: Temporarily out of stock

Ex. VAT: £109.00 (Incl. VAT: £130.80 )

Details for LP Electric Fuel Pump - Dual Polarity

Single ended points type Pump. Dual Polarity. Low pressure 12 Volt with minimum flow of 8 gallons per hour. Bulkhead Mounted.

For more information on SU Fuel Pumps please see the technical pages of the SU Shop.

Please note:

For all other enquires please contact us either by phone on: +44 (0) 1722 412 500 or via email at: info@burlen.co.uk

Due to the nature of this product, it may not always be available off the shelf and may need to be built to order. All of our Carburettors and Fuel Pumps are still built by hand here in our factory in Salisbury.

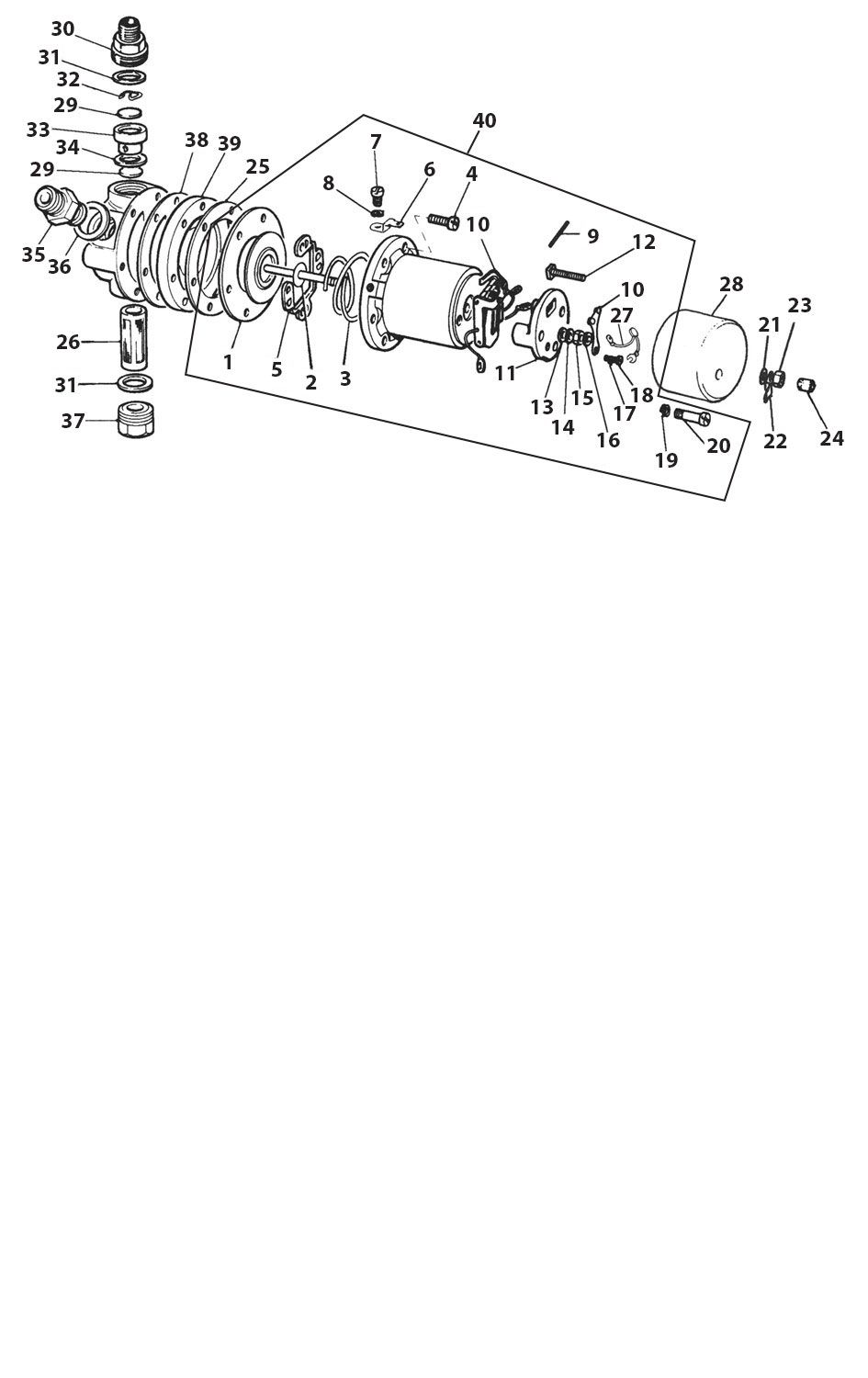

Components List

Please select your items from below

No	Item
1	Diaphragm Assembly - LP Pumps Pre 1985	View
	AUB 6082	View
2		-
3	Spring	View
4	Screw	View
5	Superceded now to AUA 1433	View
6	Lucar Connector	View
7	Screw: 4BA X 0.25	View
	AUA 4850	View
8	Spring washer	View
	AUC 2246	View
9	Rocker Spindle	View
10	Twin Point Rocker Assembly and Blade	View
11	Pedestal Electric Pumps	View
12	Terminal Screw	View
13	Spring washer	View
14	Lead washer	View
15	Terminal Nut	View
16	washer	View
17	Dished Washer 5BA	View
18	Screw 5BA	View
19	Spring washer	View
20	Screw	View
21	Shakeproof Washer - Superseded to 07734	View
22	Lucar Connector	View
23	Nut for terminal knob - 2BA	View
24	Terminal Knob	View
25	Fuel Pump Diaphargm Gasket-Non Asbestos	View
26	Fuel Filter for Fuel Pump Body	View
27	Supressor Assembly -Dual Polarity	View
28	Flat Top Pump Cap. Black with no Air Vent Hole	View
29	Valve Disc	View
30	Union Outlet	View
31	washer	View
32	Circlip	View
33	Valve Cage	View
34	washer	View
35	Union - Inlet	View
36	Fibre washer	View
37	Filter Plug	View
38	Non Asbestos Gasket- superseded to AUA 4082X	View
39	Sandwich Plate	View
40		-
Delete

Hover over the image above to zoom
