PartsforAUC 702 for Jaguar 1946 onwards XK 120 3442 cc
Full Carb Set :
AUC 702 |
Jaguar 1946 onwards |
XK 120 |
3442 cc |
H8 |
1952 to 1954
SU Carburettors and Spares for Jaguar 1946 onwards XK 120 3442 cc H8 1952 to 1954
Select Carburetter
Front
Rear
Choose item from dropdown list

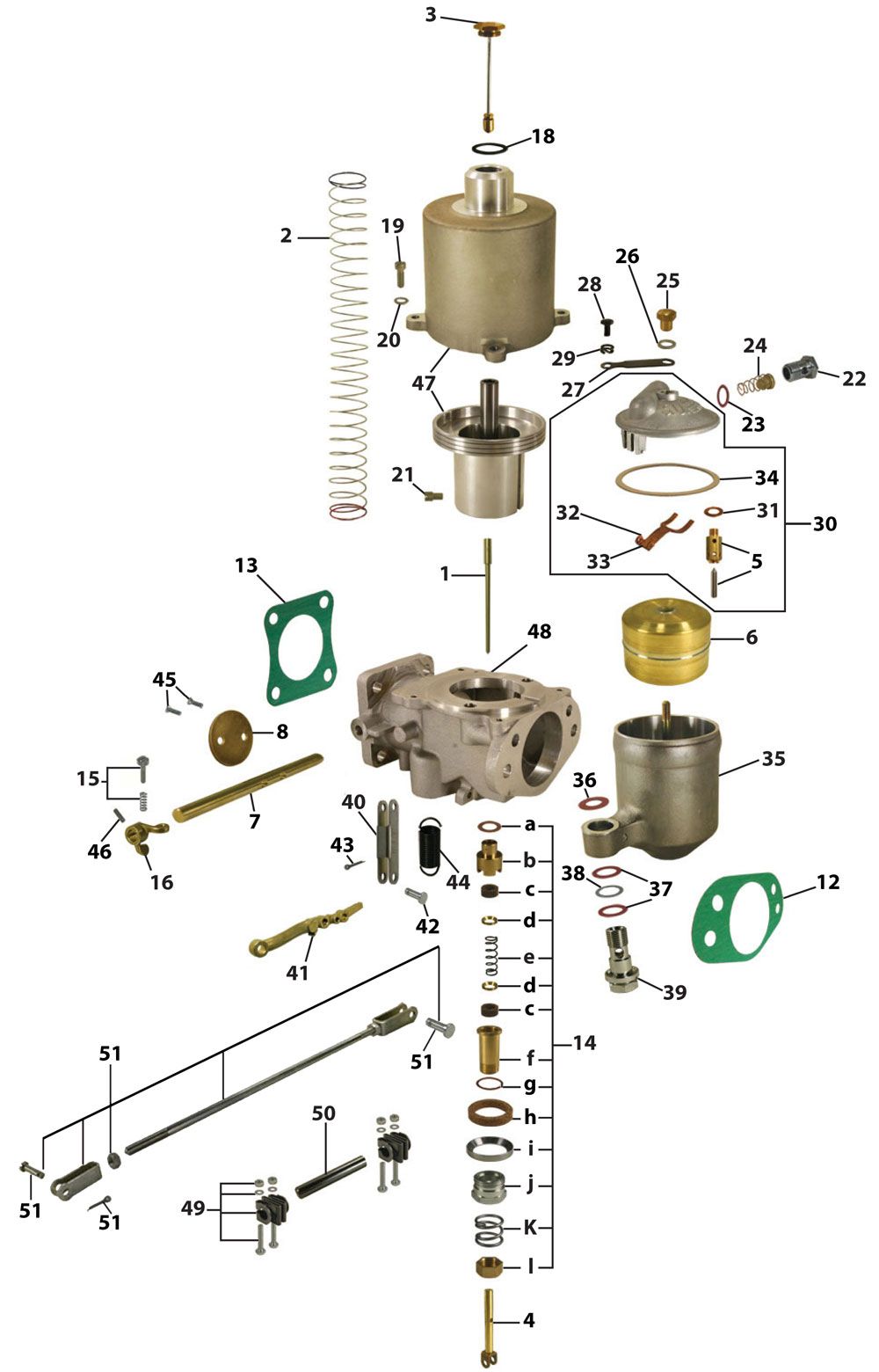

AUC 702T - Pair of H8 Carburettors for a Jaguar XK 120 7 & 8:1 Comp Ratio 'C Type' Head 6 cyl 1952
1a - Weak Needle
1b - Std needle
1c - Rich Needle
2 - Piston Spring
3 - Damper
4 - Jet
5 - Needle Valve
6 - Float
7 - Throttle Spindle
8 - Throttle Disc
10 - Service Kit
11 - Rebuild Kit
12 - Air Inlet Gasket
13 - Manifold Flange Gasket
14 - Jet Bearing Kit
14a - Top Bearing Washer
14b - Top Bearing
14c - Cork Gland
14d - Gland Washer
14e - Spring
14f - Bottom Bearing
14g - Bottom Bearing Washer
14h - Cork Gland
14i - Sealing Ring
14j - Jet Sealing Nut
14k - Spring
14l - Jet Adjusting Nut
14m - Cork Washer Set (Not Illustrated)
15 - Slow Running Screw Kit
16 - Throttle Stop
17 - Throttle Lever (Not Illustrated)
18 - Damper Cap Washer
19 - Suction Chamber Screws
20 - Washer- for Suction Chamber Screws
21 - Needle Locking Screw
22 - Banjo Bolt
23 - Banjo Washer
24 - Fuel Filter
25 - Float Lid Cap Nut
26 - Aluminium Washer
27 - Support Arm
28 - Support Arm Boltd
30 - Float Lid Assembly
31 - Washer - Needle Valve
32 - Float Lever Pin
33 - Float Lever
34 - Float Lid Gasket
35 - Float Chamber
36 - Fibre Washer
37 - Fibre Washer
38 - Brass Washer
39 - Holding Up Bolt
42 - Pivot Pin
43 - Split Pin
44 - Jet Return Spring
45 - Throttle Disc Screws
46 - Taper Pin
47 - Suction Chamber & Piston Assembly
48 - Carburettor Body
49 - Coupling Assembly
50 - Connecting Rod
51 - Choke Interconnection
51a - Ford End
51b - Nut
51c - Interconnection Rod
51d - Clevis Pin
51e - Split Pin
