PartsforAUC 577 for Jaguar 1946 onwards XK 120 3442 cc
Full Carb Set :
AUC 577 |
Jaguar 1946 onwards |
XK 120 |
3442 cc |
H6 TH |
1952 to 1954
SU Carburettors and Spares for Jaguar 1946 onwards XK 120 3442 cc H6 TH 1952 to 1954
Select Carburetter
Front
Rear
Choose item from dropdown list

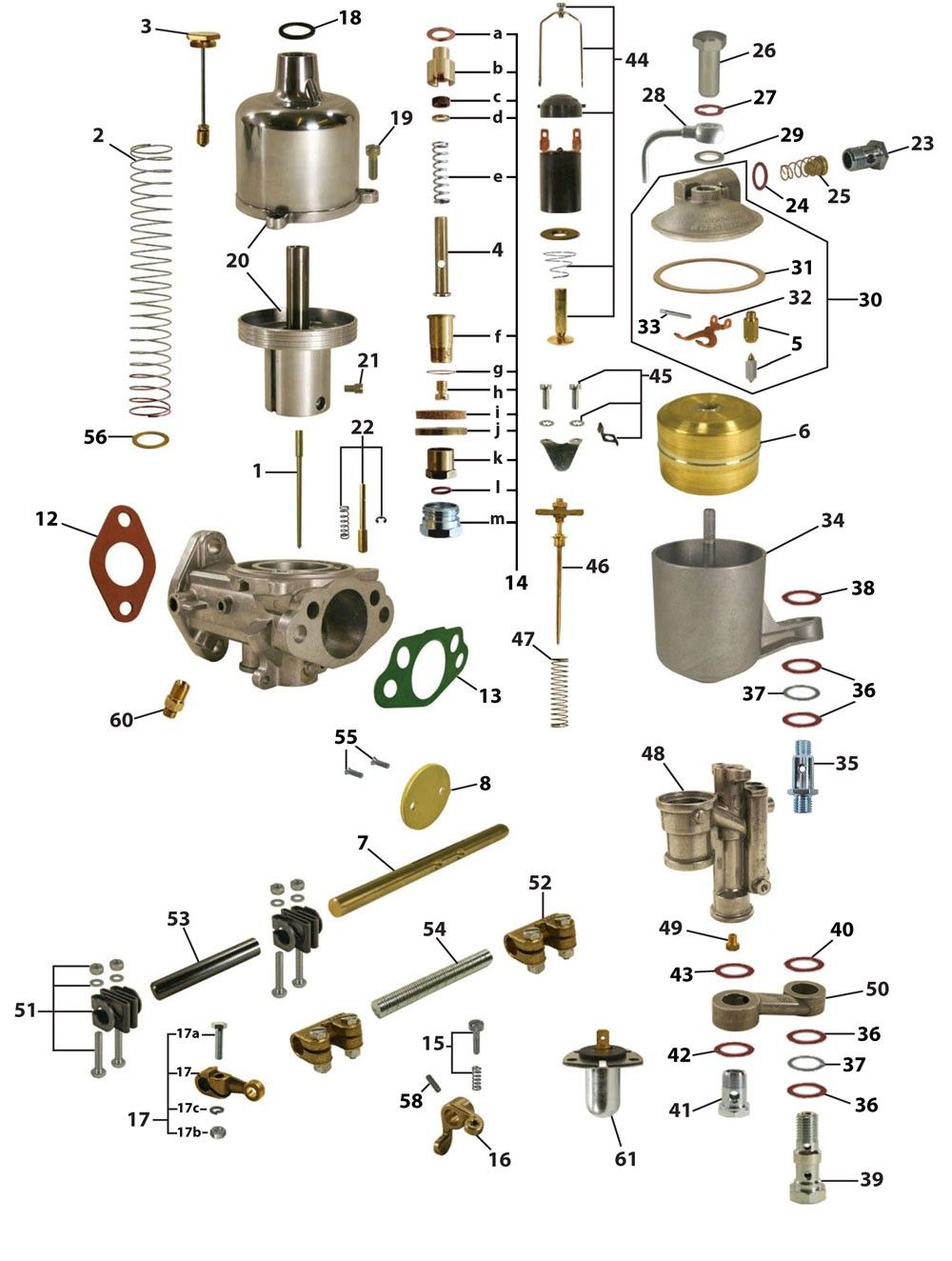

AUC 577T - Pair of H6 Thermo Carburettors for a Jaguar XK 120 6 cyl 1951-54
1b - Std needle
2 - Piston Spring
3 - Damper
4 - Jet
5 - Needle Valve
6 - Float
7 - Throttle Spindle
8 - Throttle Disc
10 - Service Kit
11 - Rebuild Kit
12 - Air Inlet Gasket
13 - Manifold Flange Gasket
14 - Thermo Jet Bearing kit
14a - Copper Washer
14b - Top Bearing
14c - Cork Gland
14d - Gland Washer
14e - Spring
14f - Bottom Bearing
14g - Copper Washer
14h - Jet Adjusting Screw
14i - Cork Gland
14j - Sealing Ring
14k - Jet Sealing Nut
14l - Cap Washer
14m - End Cap
14n - Cork Washer Set (Not Illustrated)
15 - Idle Adjusting Screw Kit
17a - Bolt
17b - Nut
17c - Washer
18 - Danoer Cap Washer
19 - Suction Chamber Screws
23 - Banjo Bolt
24 - Banjo Washer
25 - Fuel Filter
26 - Float Lid Bolt
27 - Aluminium Washer
28 - Overflow Pipe
29 - Serrated Washer
31 - Float Lid Gasket
32 - Float Lever
33 - Float Lever Pin
35 - Holding Up Bolt - Float Chamber Only
36 - Fibre Washer
37 - Steel Washer
38 - Fibre Washer
39 - Holding Up Bolt - Thermo & Float Camber
40 - Fibre Washer
41 - Thermo Bolt
42 - Fibre Washer
43 - Fibre Washer
44 - Thermo Solenoid Assembly
45 - Thermo Dust Shield Kit
48 - Thermo Carburettor Body
49 - Thermo Jet
50 - Support Arm
51 - Coupling Assembly
52 - Coupling Assembly - Alternative
55 - Throttle Disc Screws
56 - Skid Washer (For Tapered Springs)
57 - Throttle Spindle Bushes (Not Illustrated)
58 - Taper Pin
60 - Ignition Union
61 - Thermostatic Switch
view
Choose item from dropdown list
AUC 577T - Pair of H6 Thermo Carburettors for a Jaguar XK 120 6 cyl 1951-54
1b - Std needle
2 - Piston Spring
3 - Damper
4 - Jet
5 - Needle Valve
6 - Float
7 - Throttle Spindle
8 - Throttle Disc
10 - Service Kit
11 - Rebuild Kit
12 - Air Inlet Gasket
13 - Manifold Flange Gasket
14a - Copper Washer
14b - Top Bearing
14c - Cork Gland
14d - Gland Washer
14e - Spring
14f - Bottom Bearing
14g - Copper Washer
14h - Jet Adjusting Screw
14i - Cork Gland
14j - Sealing Ring
14k - Jet Sealing Nut
14l - Cap Washer
14m - End Cap
14n - Cork Washer Set (Not Illustrated)
15 - Idle Adjusting Screw Kit
17a - Bolt
17b - Nut
17c - Washer
18 - Danoer Cap Washer
19 - Suction Chamber Screws
23 - Banjo Bolt
24 - Banjo Washer
25 - Fuel Filter
26 - Float Lid Bolt
27 - Aluminium Washer
28 - Overflow Pipe
29 - Serrated Washer
31 - Float Lid Gasket
32 - Float Lever
33 - Float Lever Pin
35 - Holding Up Bolt - Float Chamber Only
36 - Fibre Washer
37 - Steel Washer
38 - Fibre Washer
39 - Holding Up Bolt - Thermo & Float Camber
40 - Fibre Washer
41 - Thermo Bolt
42 - Fibre Washer
43 - Fibre Washer
44 - Thermo Solenoid Assembly
45 - Thermo Dust Shield Kit
48 - Thermo Carburettor Body
49 - Thermo Jet
50 - Support Arm
51 - Coupling Assembly
52 - Coupling Assembly - Alternative
55 - Throttle Disc Screws
56 - Skid Washer (For Tapered Springs)
57 - Throttle Spindle Bushes (Not Illustrated)
58 - Taper Pin
60 - Ignition Union
61 - Thermostatic Switch
view
